Floor Elements

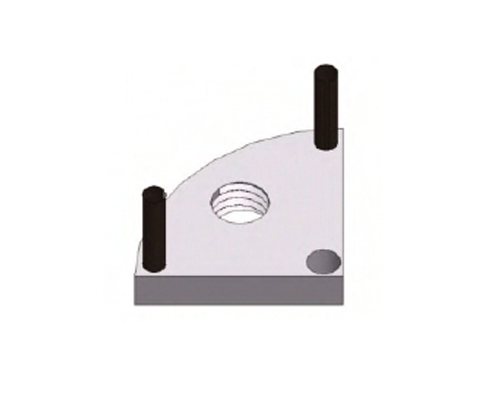

Mounting Plate S
Mounting Plate R

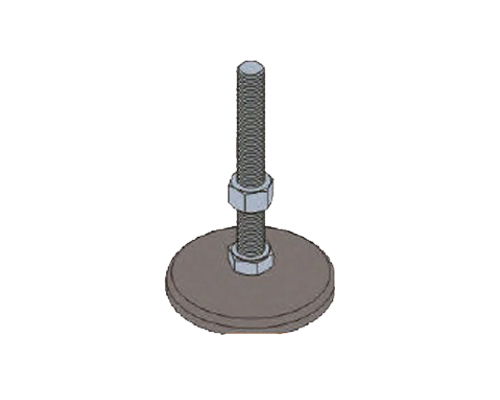

Levelling Base
Castor Wheel

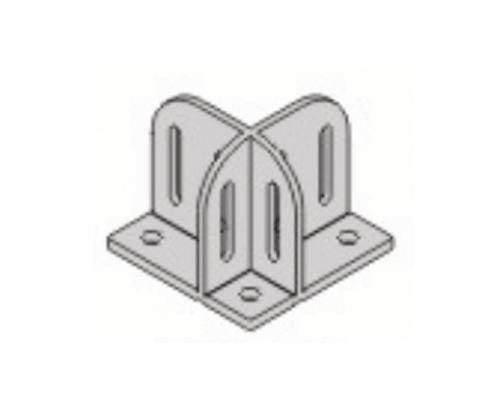

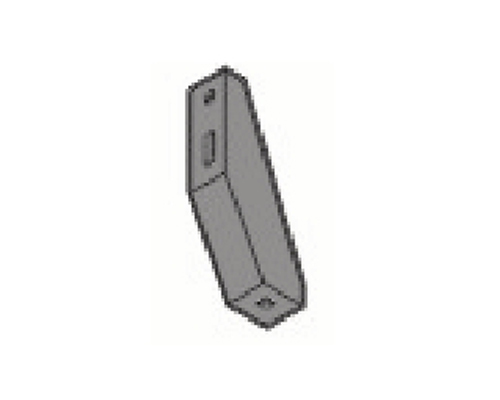

Base Angle
Base Plate

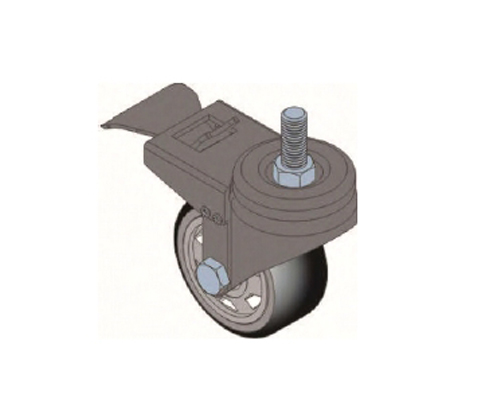

LEVELLER CASTOR
| PRODUCT | PART CODE | WHEEL DIA(mm) | ADJUSTABLE HEIGHT(mm) | LOAD CAPACITY (kg/Wheel) | LOADING HEIGHT (mm) | SWIVEL RADIUS (mm) | PLATE SIZE (mm) | |
|---|---|---|---|---|---|---|---|---|
| LEVELLER CASTOR | SMT LC.50.CA | 40 x18.5 | 10 | 50 | 73.5 | 51 | (A) 42 x 42 (B) 55 x 55 |
(C) 3 (D) 7 |
| LEVELLER CASTOR | SMTLC.250.CA | 60 x 23.5 | 10 | 250 | 86 | 63 | (A) 42 x 42 (B) 55 x 55 |
(C) 3 (D) 7 |
| LEVELLER CASTOR | SMTLC.500.CA | 80 x 30 | 16 | 500 | 109 | 75 | (A) 42 x 42 (B) 55 x 55 |
(C) 3 (D) 7 |
| LEVELLER CASTOR | SMTLC.750.CA | 100 x 30.5 | 12 | 750 | 121 | 90.5 | (A) 42 x 42 (B) 55 x 55 |
(C) 3 (D) 7 |
